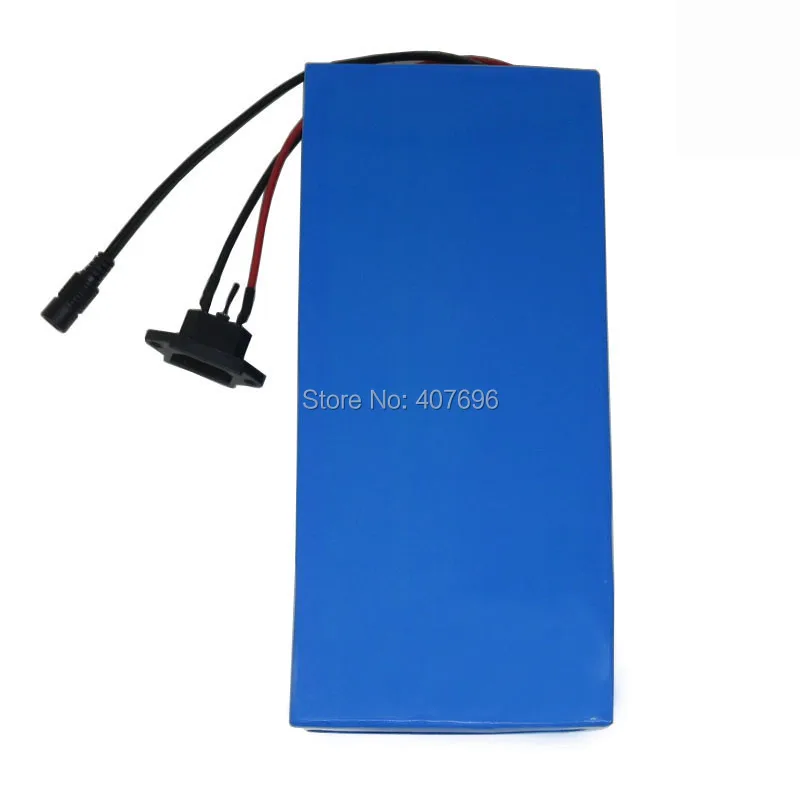

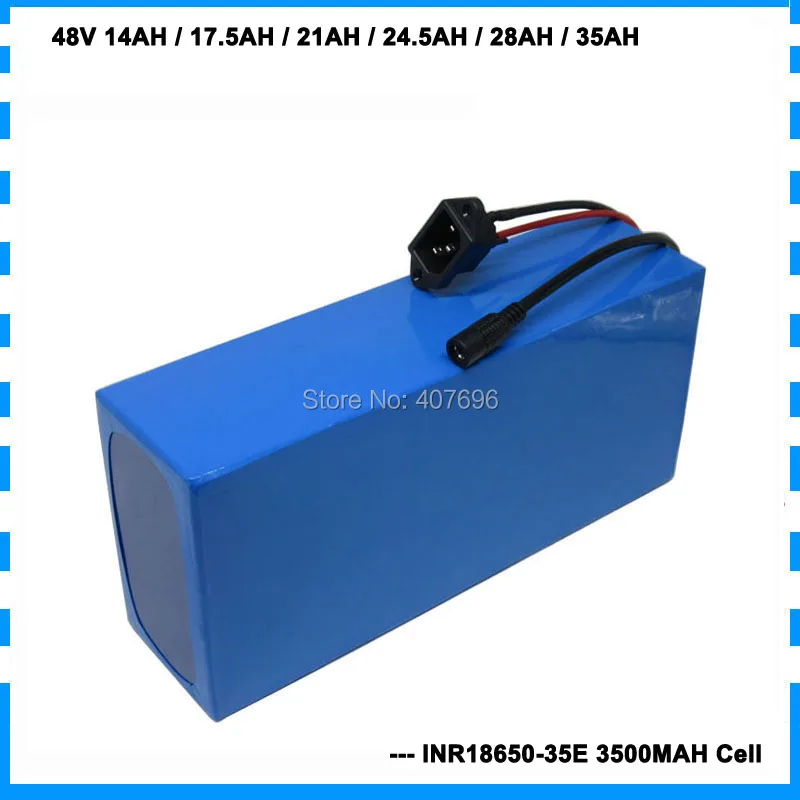

48V E bike battery 48V 14AH 17.5AH 21AH 24.5AH 28AH lithium battery use for samsung 3500mah cell With BMS 2A Charger Parts included: 1. 1pcs48v Lithium Battery ,30A / 50A BMS Built in. 2.1pcs54.6V 2ACharger(With EU/US/UK/AU AC Charger plug we can offer ) if you need fast charger,please contact us Electric Bike Battery Specifications: 48V 14AH / 17.5AH Battery Nominal Voltage: 48V Nominal Capacity: 14Ah /17.5AH Composed Type: 13S4P /13S5P Cells: 3.6V 3500MAH 18650 3C 10A Cells BMS: 30Amp continuous 90Amp maximum Fit Motor Power : 48V 200W--1400W Charge Current: 2-5A Charge Cut-off Voltage: 54.6V Discharge Cut-off Voltage:39V Discharge Temperature: -10 to 55°C Charge Temperature: 0 to 45°C Dimensions: 255*80*70mm /255*100*70MM Cycle life: ≥80% capacity after 800 cycles. 48V 21AHBattery Nominal Voltage: 48V Nominal Capacity: 21Ah Composed Type:13S6P Cells: 3.6V 3500MAH 18650 3C 10ACells BMS: 30 Amp continuous 90Amp maximum Fit Motor Power : 48V 200-1400W Charge Current: 2-5A Charge Cut-off Voltage: 54.6V Discharge Cut-off Voltage: 39V Discharge Temperature: -10 to 55°C Charge Temperature: 0 to 45°C Dimensions: 255*120*70mm Cycle life: ≥80% capacity after 800 cycles. 48V 24.5AH Battery Nominal Voltage:48V Nominal Capacity: 24.5Ah Composed Type: 13S7P Cells: 3.6V 3500MAH 18650 3C 10ACells BMS: 50 Amp continuous 150Amp maximum Fit Motor Power : 48V 500W--2400W Charge Current: 2-5A Charge Cut-off Voltage: 54.6V Discharge Cut-off Voltage: 39V Discharge Temperature: -10 to 55°C Charge Temperature: 0 to 45°C Dimensions: 255*140*70mm Cycle life: ≥80% capacity after 800 cycles. 48V 28AH Battery Nominal Voltage: 48V Nominal Capacity: 28Ah Composed Type:13S8P Cells: 3.6V 3500MAH 18650 3C 10ACells BMS: 50 Amp continuous 150Amp maximum Fit Motor Power :48V 500 -- 2400W Charge Current: 2-5A Charge Cut-off Voltage:54.6V Discharge Cut-off Voltage: 39V Discharge Temperature: -10 to 55°C Charge Temperature: 0 to 45°C Dimensions: 255*160*70mm Cycle life: ≥80% capacity after 800 cycles. About Discharge port: We offer these discharge port as follows. you can choose which one you want. If you have no any require,we will send A--3PIN Port as default. Also you can customized other discharge port. Warnings: Do not put the battery in water, and keep the battery in a cool dry surrounding. Do not use or leave the battery near a heat temperature(in fire or a heater) Do not reverse the position and negative terminals. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. Do not directly solder the battery and pierce the battery with a nail or other sharp objects. Must use Qualified charger,when you charging the battery must have people nearby.
